StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, 5K 60Hz DP
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
Download brochure / datasheetProduct Details

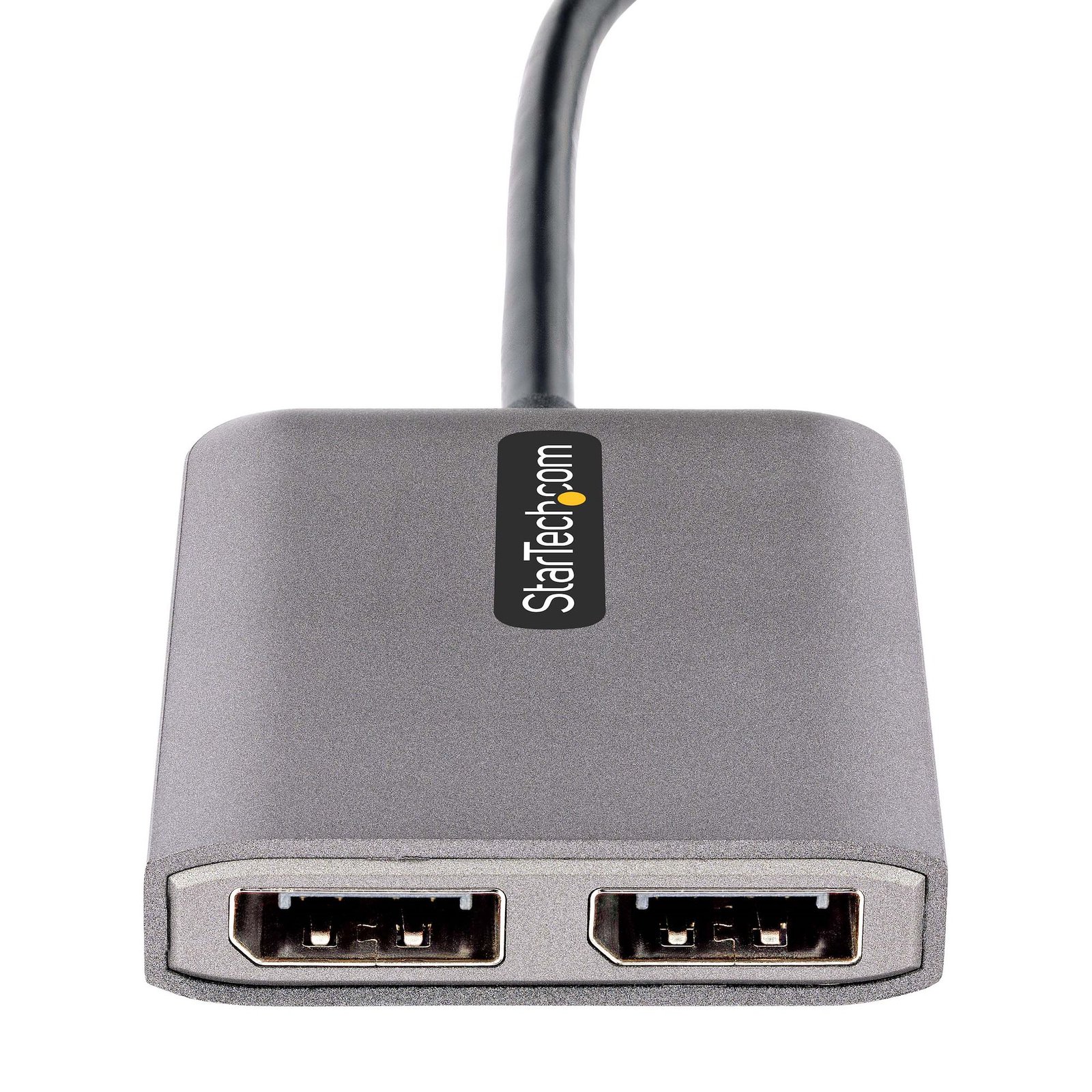

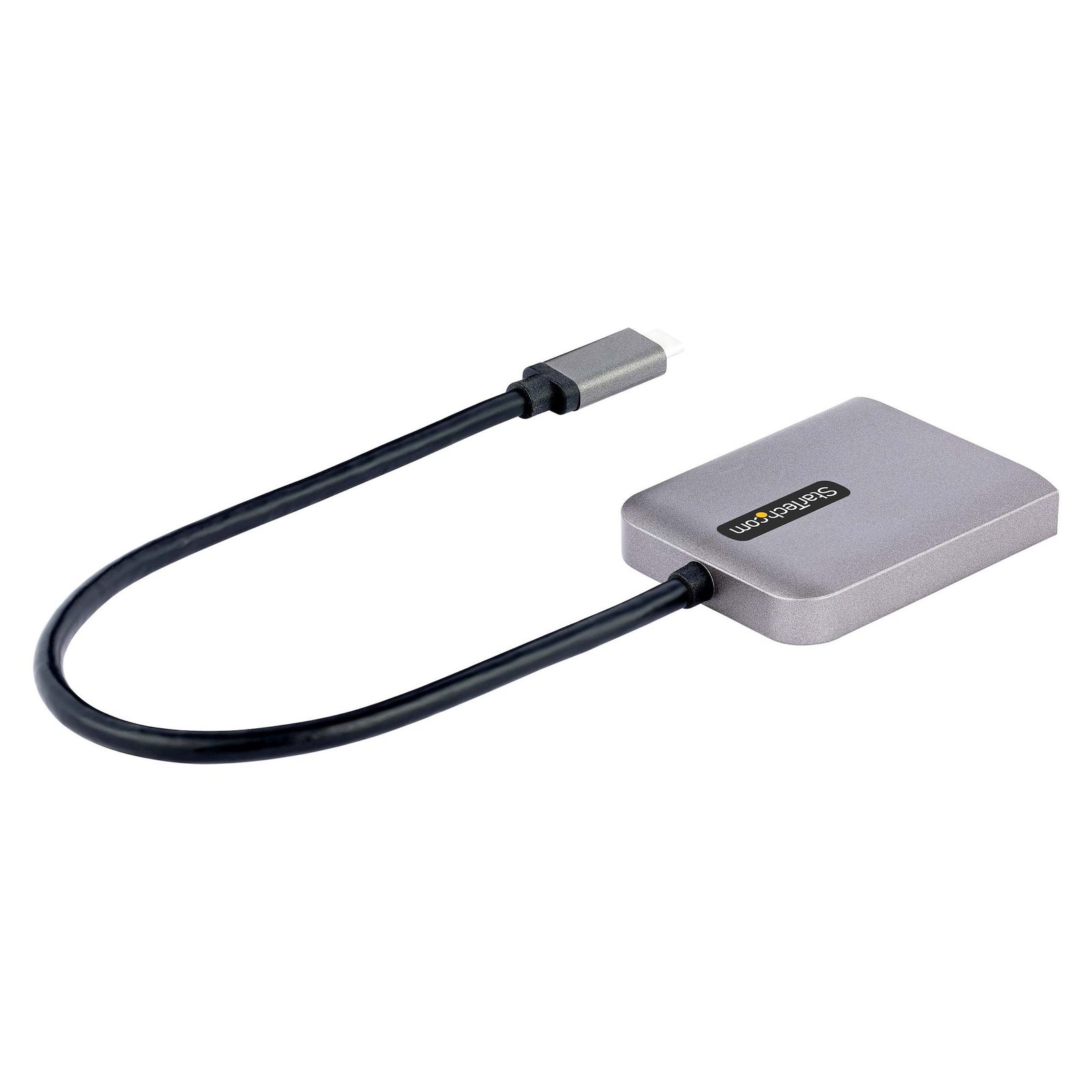

This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.
4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection
Maximum Resolution
Output 1
Maximum Resolution
Output 2
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
5K 60Hz
5K 60Hz
*Intel 11th Gen with DSC
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 60Hz
4K 60Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Intel 8th - 10th Gen Processors & Later
Multitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
Product Specifications
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | MST14CD122DP |
| Brand Name | StarTech.com |
| Product Model | MST14CD122DP |
| Product Name | StarTech.com USB-C to Dual Displayport 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only |
| Marketing Information |
USB-C to Dual-DisplayPort MST Hub drives up to two 4K 60Hz displays using a USB-C DisplayPort 1.4 host with DSC - HDR 2ch Audio HDCP 2.2 Backwards compatible with DP 1.4/DP 1.2 hosts at lower resolutions - Multi-monitor adapter adds up to two extended/mirrored displays Utilize the host's built-in GPU capabilities Driverless - Discrete GPUs/12th gen and up Intel Processors with DP 1.4 and DSC required for dual-4K 60Hz monitors - 1ft built-in cable Windows Only
|
| Packaged Quantity | 1 |
| Mfr. Part Number | MST14CD122DP |
|---|---|
| GTIN / Barcode | - |
| Product Model | MST14CD122DP |
| Product Type | - |
| Packaged Quantity | 1 |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Laptops & Notebooks |
