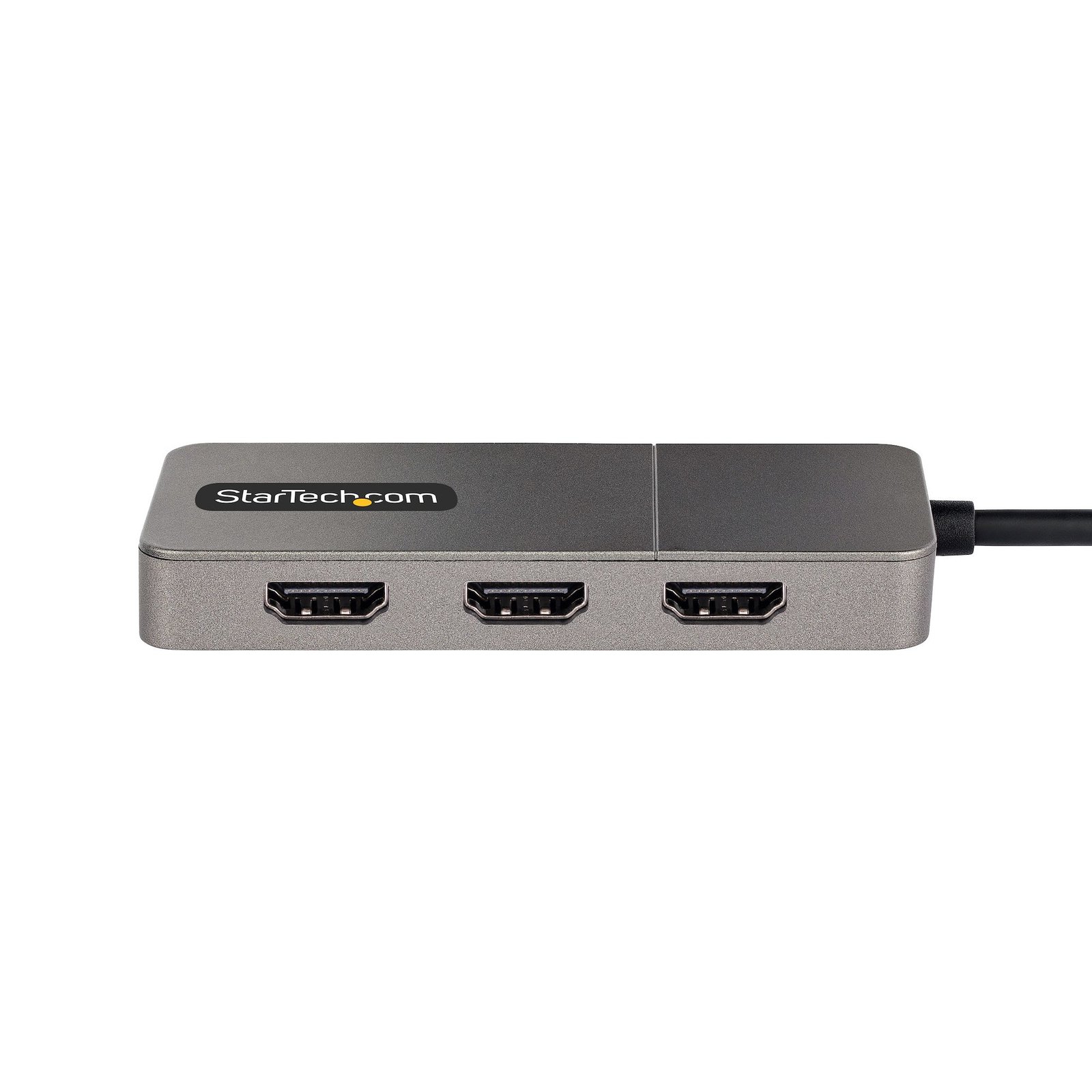

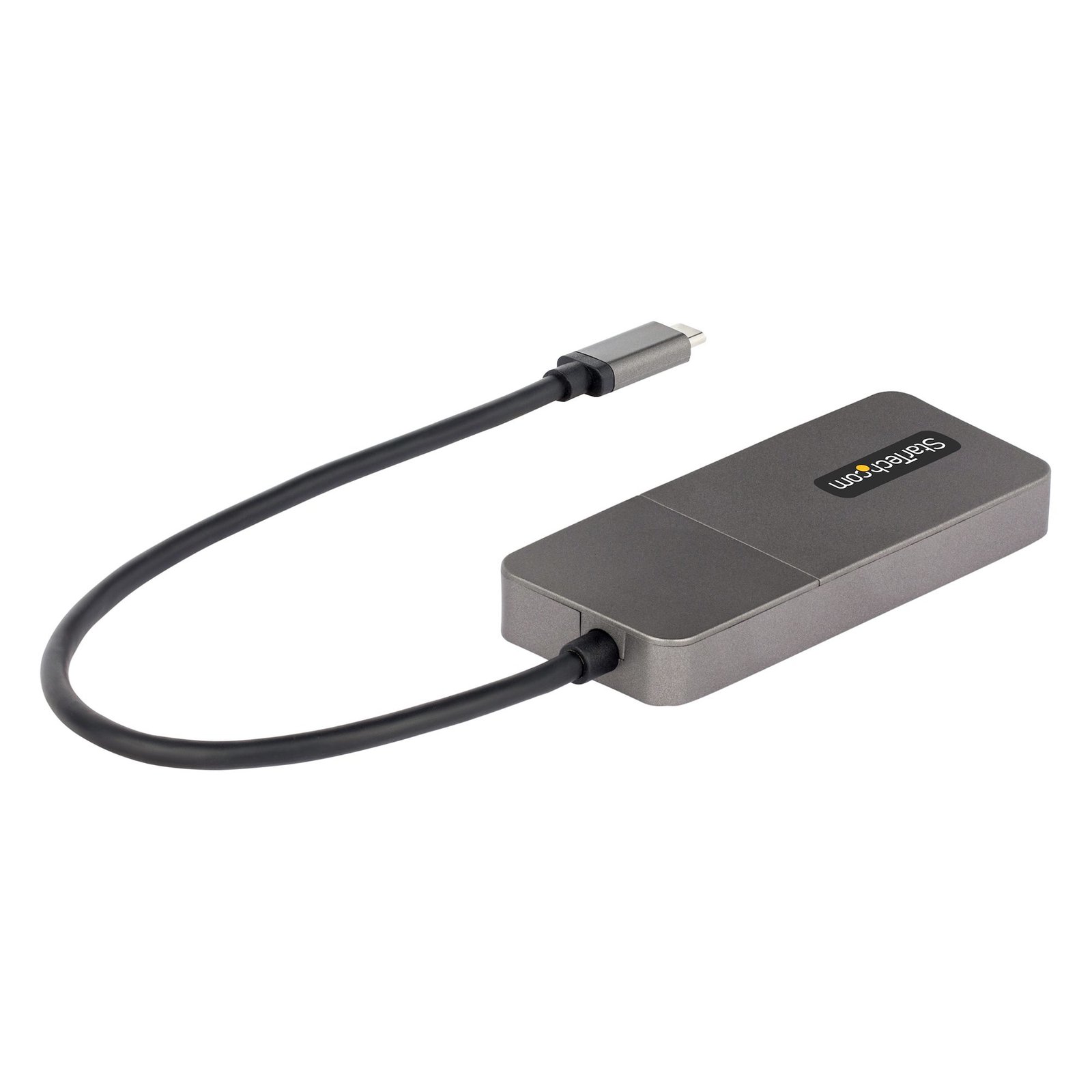

StarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K 60Hz
Prices shown in USD. Taxes, duties and freight are quoted separately. Call 571-485-8682 for volume pricing.
Download brochure / datasheetProduct Details
This USB-C to HDMI MST Hub enables a connection to three HDMI monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.
Multi-Tasking Made Easy
Configure up to three displays in extended or mirrored mode, using this USB-C to HDMI triple-video adapter. Connecting three independent 4K 60Hz displays creates high-performance extended-display workstations. This encourages increased multi-tasking across your organization, resulting in increased productivity.
Host Connection
Max Resolution
Output 1
Max Resolution
Output 2
Max Resolution
Output 3
Example Host
Processor/Graphics
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
4K 60Hz
*Some Intel 11th Gen
Intel 12th Gen Processors & Later
Discrete AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 30Hz
4K 30Hz
4K 30Hz
Intel 10th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Discrete AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
1080p
Intel 8th - 10th Gen Processors & Later
*Please verify the GPU capabilities and DSC for MST driver support with the OEM of the host device
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into three independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Hassle-Free Setup
Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 3/4, and USB4 enabled Windows devices. Plug-and-play installation, with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this triple-monitor splitter is bus-powered, meaning no external power is required.
This product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.
Product Specifications
| Manufacturer | STARTECH.COM |
|---|---|
| Manufacturer Part Number | MST14CD123HD |
| Brand Name | StarTech.com |
| Product Model | MST14CD123HD |
| Product Name | StarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K 60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only |
| Marketing Information |
USB-C to Triple HDMI MST Hub drives up to 3x 4K 60Hz displays using a USB-C DisplayPort 1.4 host with DSC - HDR 2ch HDMI Audio HDCP 2.2 Backwards compatible with DP 1.4/DP 1.2 hosts at lower resolutions - Multi-monitor adapter adds up to three extended/mirrored displays Utilize the hosts built-in GPU capabilities Driverless - Discrete GPUs/12th gen and up Intel Processors with DP 1.4 and DSC required for three 4K 60Hz monitors - 1ft (30cm) built-in cable Windows Only
|
| Packaged Quantity | 1 |
| Mfr. Part Number | MST14CD123HD |
|---|---|
| GTIN / Barcode | - |
| Product Model | MST14CD123HD |
| Product Type | - |
| Packaged Quantity | 1 |
| Brand | StarTech.com |
| Availability | In Stock |
| Price Currency | USD |
| Category | Laptops & Notebooks |
